CTS Harvest Master Grain Trailer

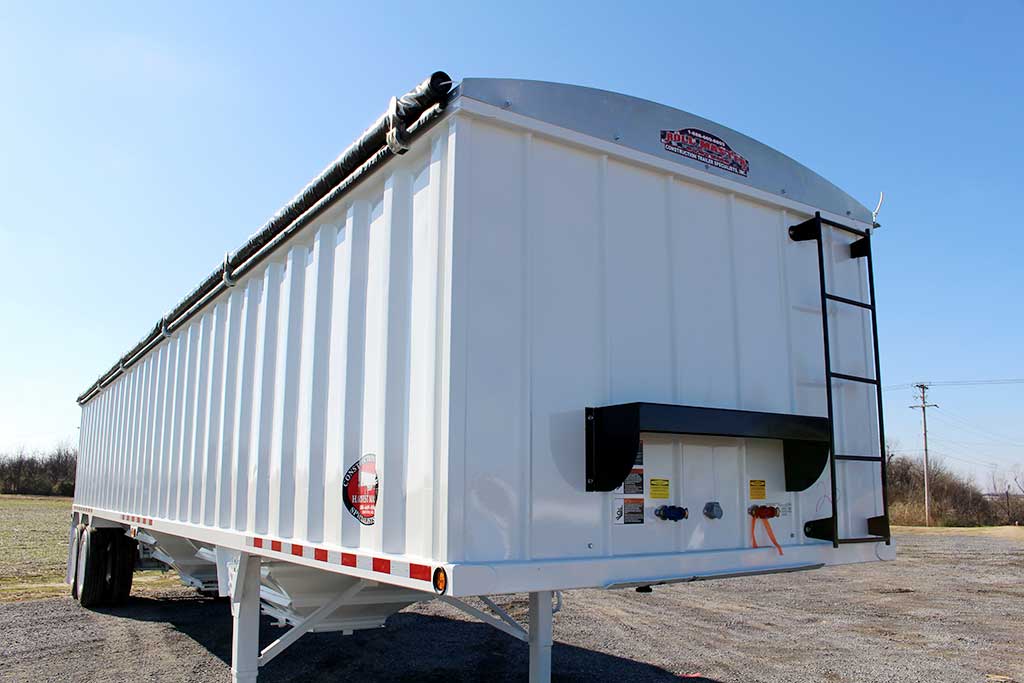

Young’s Irrigation & Equipment is please to offer the Harvest Master grain trailer from Construction Trailer Specialist. The Harvest Master offers you the best quality to get the job done in the field and down the road. The Harvest Master grain trailer features easy-to-open butterfly door cranks as well as catwalks and ladders in the front and back of the trailer. It also features sight glass windows on the driver’s side that allows one to inspect the load as it’s being poured into the hopper without climbing on top. Our manual side-to-side roll tarp is also included with the purchase of a trailer.

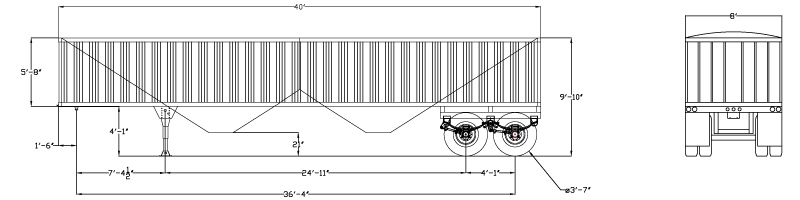

Straight-side

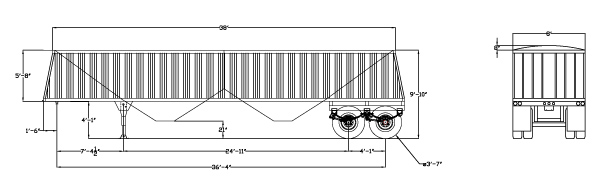

Slope-end

Specifications

Dimensions40′ Length x 96″ width x 68″ Side Height
LightingStandard LED Lighting
King Pin/Coupler Height18″ / 49″
Internal ViewingWhite, Black or Grey
Sides14 GA, Corrugated Walls
Suspension50,000 lb. 4-Spring Tandem
Tires/Wheels11R X 24.5 14 Ply Radials / 10 Hole Hub Piloted Steel
Ladders/PlatformFront and Rear
Hoppers(2) 14 GA, Hoppers, 24″ Openings
PaintHigh-Gloss, Reverse-Impact, UV-Protectant, Rust-Inhibiting
Tarp18 oz. Manual Roll Tarp, Removable Headers and Bows
Landing Gear2-Speed
Axles25,000 lb. 5″ Tubular, 5/8″ Wall

Options

  • 30″ or 36″ Hopper Doors
  • Air Ride Suspension
  • Aluminum Wheels
  • Custom Colors
  • Hopper Work Lighting
  • Side Chutes
  • Vibrators
  • 2-Speed Doors
  • Electric Doors
  • Alum. Ladders, Platforms
  • Numerous Tarp Options, Colors
  • Electric Landing Gear
  • Custom Heights/Lengths
  • Sloped Ends
  • Additional Options Available Upon Request
  • Undercoating
  • OEM 22.5 Tires

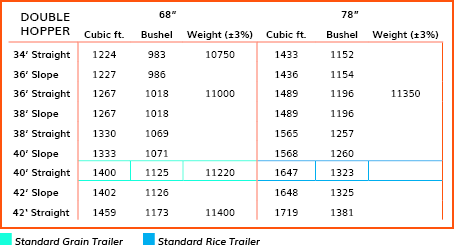

Grain Hopper Volume Capacity

(Water Level)
