CTS Gravel Trailers

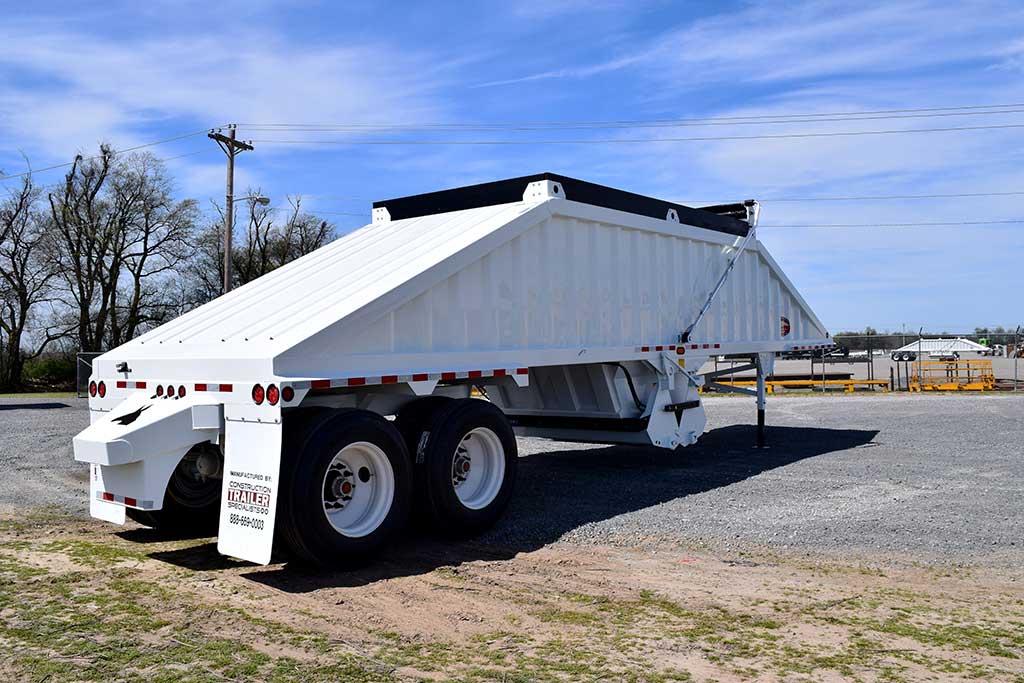

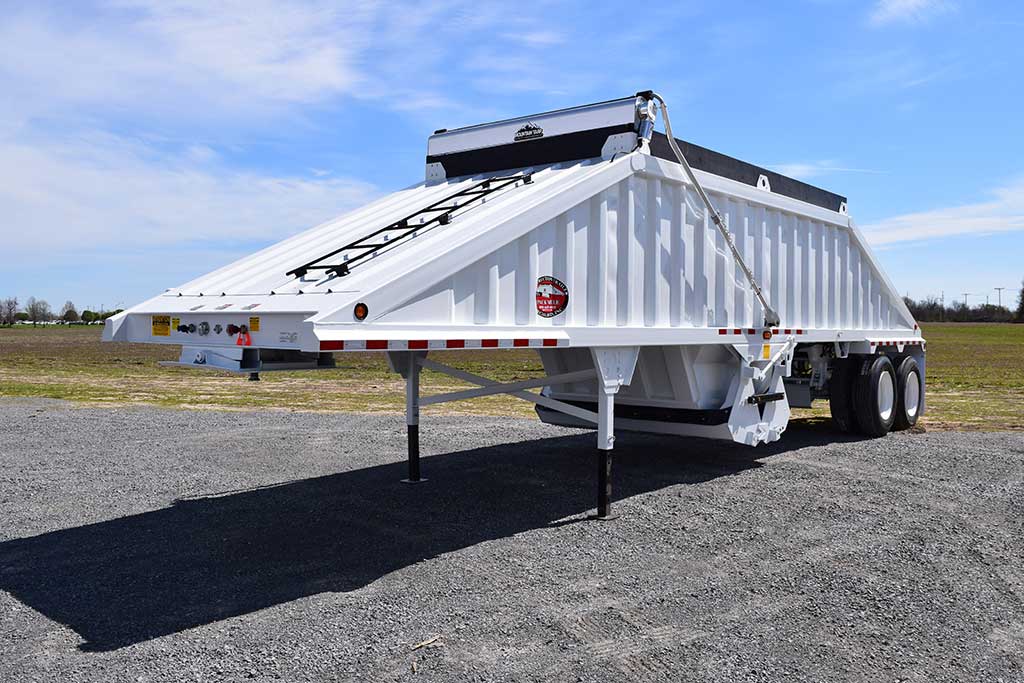

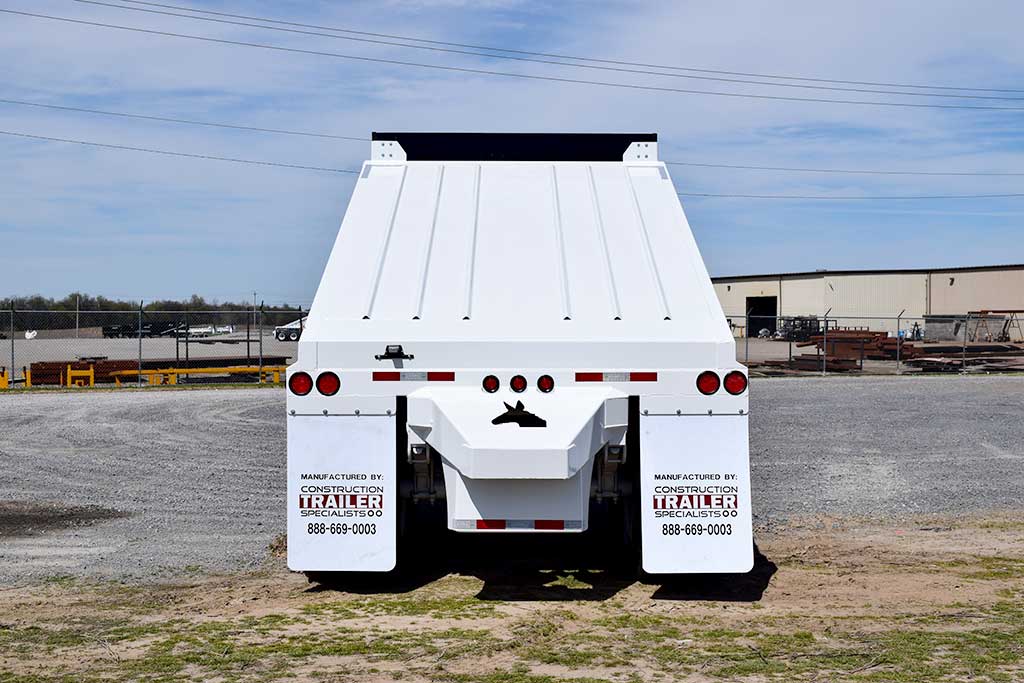

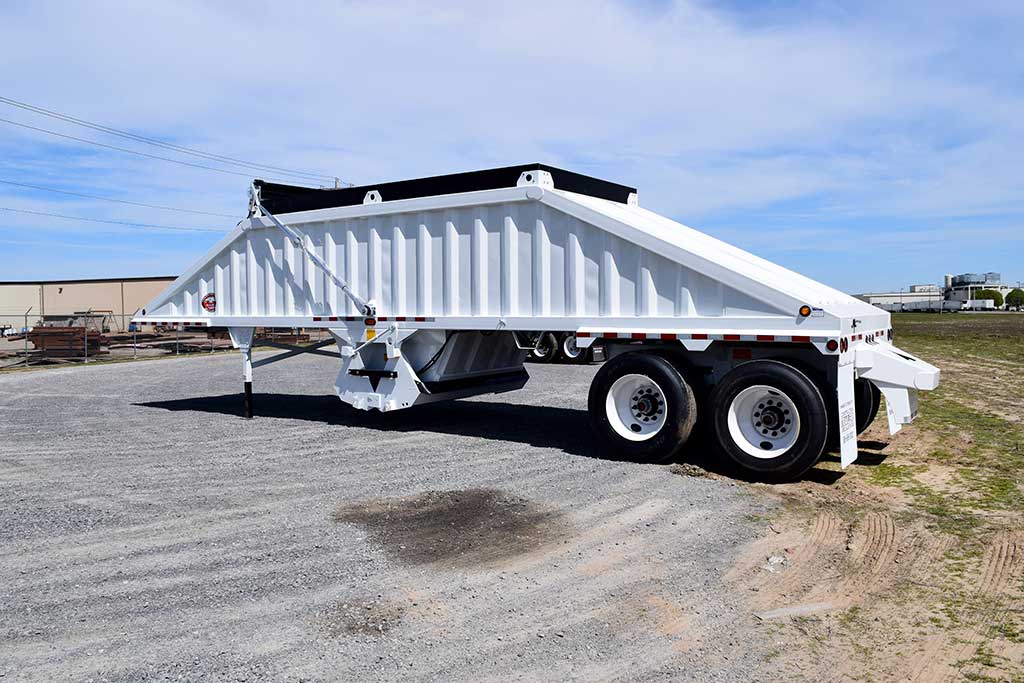

CTS Pack Mule Gravel Trailer

Young’s Irrigation & Equipment is pleased to offer the Pack Mule from Construction Trailer Specialist. The Pack Mule bottom dump trailer is the industry leader in the belly dump market. By replacing the steel with a lighter, higher strength steel, removing the slope sheets by replacing them with v-bracing, using aluminum front and rear fenders and using a lighter weight push block, the Pack Mule is able to reduce the weight of the standard bottom dump to 12,500 lbs.

Standard Bottom Dump

Watch it in action

Specifications

Dimensions40’ Length x 96” Width x 10’1” Height
Weight12,500 lbs.
LightingStandard LED Lighting
King Pin/Coupler Height18″ / 49″
ColorWhite, Black or Grey
Sides54″ Corrugated with Double Walls in Hopper Area
Upper Hopper16′ x 88″ Top Opening

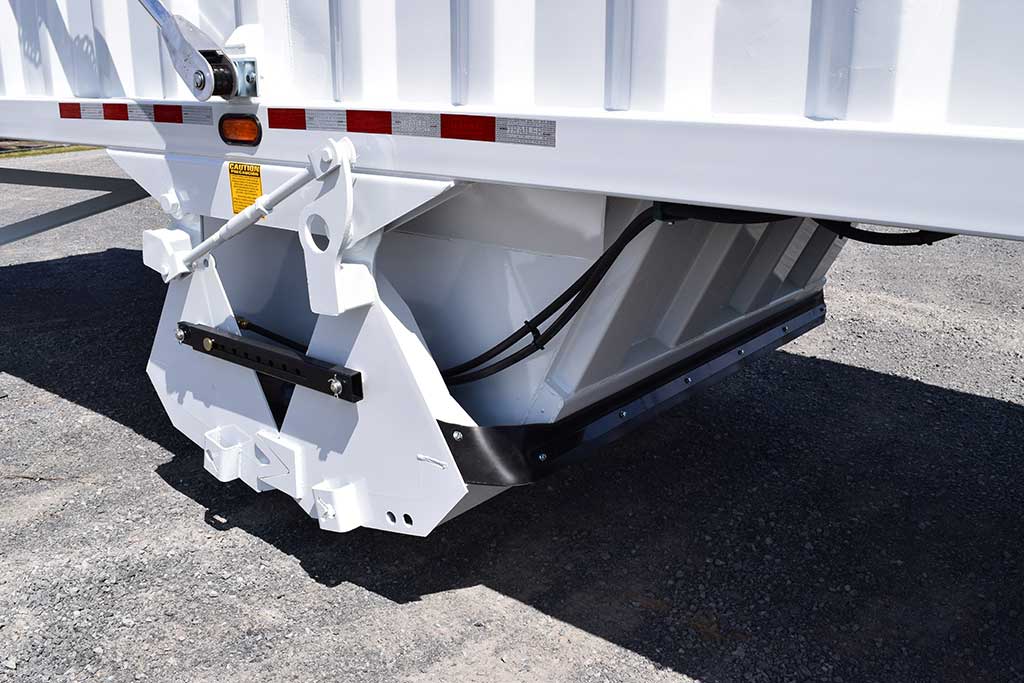

Lower Hopper54″ x 108″ Hopper Opening
Axles25,000lb. 5″ Tubular , 5/8″ Wall
Suspension50,000lb. 4-Spring Tandem
Tires/Wheels11R x 24.5 16 Ply Radials / 10 Hole Hub Piloted Steel
PaintHigh-Gloss, Reverse Impact, UV-Protectant, Rust-Inhibiting
FendersFront and Rear Bolt-On (Steel)

Options

  • 102″ Width
  • Air Ride Suspension
  • Single Point Suspension
  • Low Profile Design
  • Triple Axles & Trains
  • Scale Systems
  • Parallel Spindles
  • Versa valve
  • Infinite Gate
  • Front & Rear Lift Gate
  • No Slope Sheets
  • Custom Colors
  • Numerous Tarps
  • Numerous Tires & Wheels
  • Removable Push Block

Bottom Dump Volume Capacity

(Water Level)

Standard 40′ Length x 96″ Width x 10′ 1″ Height
23.5 Cubic Yards with 10″ Bang Boards
